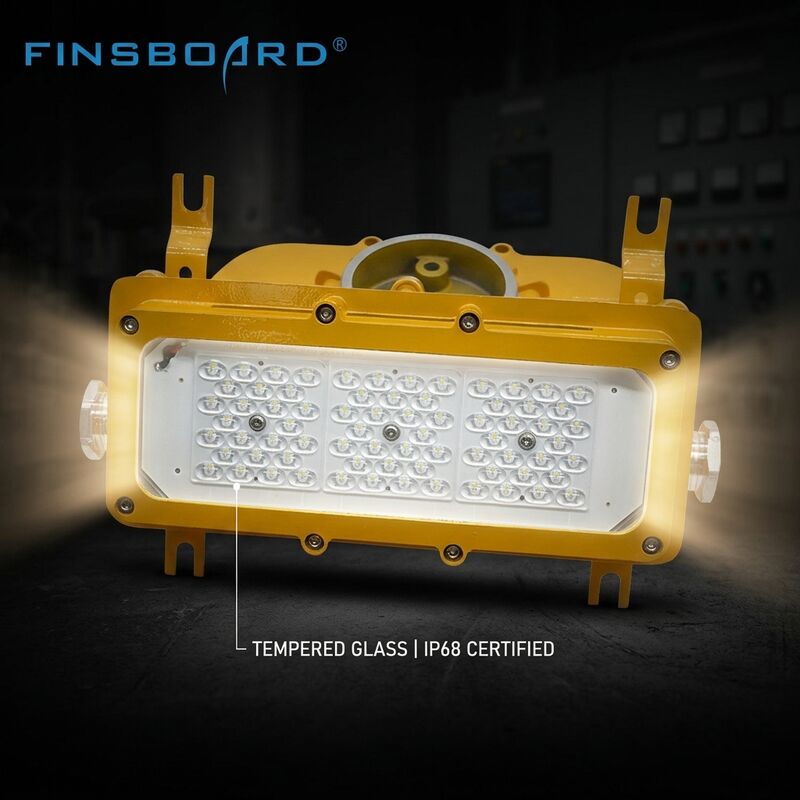

6KV Surge Protected AC100-277V 300W LED Explosion Proof Light LUMILEDS LM-80 ATEX IIb T6 IP65 Hazardous Area Lamp
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | RFEPL |
| إصدار الشهادات: | CE, ROHS, CCC, ATEX |
| رقم الموديل: | RFEPL8280-300W-SP |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 قطعة |
|---|---|
| الأسعار: | USD 319-619/Piece |
| تفاصيل التغليف: | كرتونة تصدير K=K مع حماية داخلية من رغوة EPE |
| وقت التسليم: | 15-25 يوم عمل |
| شروط الدفع: | / تي تي، خطاب الاعتماد، ويسترن يونيون |
| القدرة على العرض: | 5000 قطعة شهريا |
|
معلومات تفصيلية |
|||
| قوة: | 300 واط | فعالية مضيئة: | 100-120 لومن / ث |
|---|---|---|---|
| LED رقاقة العلامة التجارية: | المصابيح الضوئية | شهادة الصمام: | LM-80 |
| جهد الإدخال: | AC100-277V (نطاق واسع) | عامل الطاقة: | ≥0.95 |
| الشهادات: | CE، بنفايات، مجلس التعاون الجمركي، ATEX | معيار إثبات الانفجار: | السابق ديسيبل ميغابايت بنك الاستثمار الدولي T6 |
| حماية الدخول: | IP65 | حماية الطقس: | WF2 |
| حماية الطفرة: | المدمج في 6KV SPD | مؤشر تجسيد اللون: | كري ≥80 |
| مواد الإسكان: | ألومنيوم + زجاج مقسّى | خيارات زاوية الشعاع: | 30 درجة / 60 درجة / 90 درجة |
| مواصفات الكابل: | 1.0 مم² | الانتهاء من السطح: | طلاء أصفر / رمادي |
| العمر المحدد: | 50,000 ساعة | درجة حرارة التشغيل: | -40 درجة مئوية إلى +60 درجة مئوية |
| رطوبة التشغيل: | 10 ٪ إلى 90 ٪ RH | ||
| إبراز: | 6KV surge protected LED explosion proof light,300W LUMILEDS LM-80 hazardous area lamp,ATEX IIb T6 IP65 explosion proof lighting |
||
منتوج وصف
6KV Surge Protected AC100-277V 300W LED Explosion Proof Light
The RFEPL8280-300W-SP is engineered from the ground up for electrical resilience in the most challenging power environments. Industrial hazardous area installations are frequently subjected to severe electrical disturbances including lightning-induced surges, grid switching transients, and voltage fluctuations that can instantly destroy unprotected LED drivers and modules.
This luminaire addresses those risks head-on with a sophisticated built-in 6KV surge protection device that clamps destructive transient overvoltages before they reach sensitive electronic components, dramatically extending the operational life of the fixture and eliminating a leading cause of premature lighting failures in outdoor industrial sites.
Complementing this protection is a universal AC100-277V wide-range LED driver that accepts power from virtually any commercial or industrial electrical distribution system worldwide. Whether your facility operates on 120V North American supplies, 230V European grids, or 277V industrial circuits, the RFEPL8280-300W-SP connects directly without external transformers or voltage converters. The driver maintains a power factor exceeding 0.95 across the entire input range, minimizing reactive power draw and ensuring compliance with utility power quality requirements.
Technical Specifications
| Model Number | RFEPL8280-300W-SP |
| Rated Power | 300W |
| Luminous Efficacy | 100-120 LM/W |
| LED Chip Brand | LUMILEDS (LM-80 Certified) |
| Input Voltage Range | AC100-277V, 50/60Hz |
| Power Factor | ≥0.95 |
| Total Harmonic Distortion | <15% |
| Surge Protection Rating | 6KV / 3KA (IEC 61643-11 Class II) |
| Protection Modes | L-N, L-PE, N-PE (Common & Differential Mode) |
| Explosion Proof Standard | Ex db mb IIb T6 |
| Ingress Protection | IP65 |
| Weather Protection | WF2 |
| Color Rendering Index | CRI ≥80 |
| Housing Material | Die-Cast Aluminum + Tempered Glass |
| Beam Angle Options | 30° / 60° / 90° |
| Surface Finish | Electrostatic Powder Coating (Yellow / Grey) |
| Cable Specification | 1.0mm² (Fire-Resistant) |
| Rated Lifespan | 50,000 Hours (L90) |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | 10% to 90% RH (Non-Condensing) |
| Certifications | CE, ROHS, CCC, ATEX |
Applications
The RFEPL8280-300W-SP is purpose-engineered for hazardous area installations where electrical power quality cannot be guaranteed and surge-related failures would result in unacceptable safety risks and operational downtime.
- Remote oil wellhead sites and pipeline pumping stations connected to long overhead distribution lines
- Mining operations in lightning-prone regions such as Southeast Asia, Central Africa, and South America
- Offshore platform topside lighting on older installations with unstable generator-based power systems
- Chemical terminals and tank farms with extensive electrical distribution networks
- Fertilizer plants, grain elevators, and wood processing facilities in dust-laden atmospheres
Packaging & Quality Assurance
Each RFEPL8280-300W-SP is subjected to comprehensive electrical testing including surge immunity verification at the full 6KV rating, insulation resistance measurement at 500VDC, and extended burn-in operation across the complete AC100-277V input range.
A detailed test report documenting surge protection functional verification, power factor measurement, and harmonic analysis is archived for every individual serial number. Products are packaged in heavy-duty K=K export cartons with EPE foam protection, and all surge protective components carry a 5-year manufacturer warranty against defects.
Our technical support team provides electrical system compatibility assessments, surge protection coordination studies, and on-site commissioning support to ensure optimal integration with your existing electrical infrastructure. Custom driver configurations including 347V, 480V, and DC input variants are available upon request for specialized industrial applications.
