300W LED Explosion Proof Flood Light 30° Ceiling Spot High Bay Grey Finish ATEX IIB T6 IP65 RFEPL8280 Lighting
تفاصيل المنتج:
| مكان المنشأ: | قوانغدونغ، الصين |
| اسم العلامة التجارية: | ECER |
| إصدار الشهادات: | ATEX Ex db mb IIB T6, CE, ROHS, CCC |
| رقم الموديل: | RFEPL8280-300W-CL30 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 10 قطع |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حزمة مربع + فقاعة أو حسب الطلب |
| وقت التسليم: | 10-15 يومًا أو تأكيد |
| شروط الدفع: | / تي تي، ويسترن يونيون |
| القدرة على العرض: | 5000 قطعة/شهر |
|
معلومات تفصيلية |
|||
| قوة: | 300 واط | كفاءة الضوء: | 100-120lm/w |
|---|---|---|---|
| رقاقة الصمام: | لوميلدس سمد (LM-80) | زاوية الشعاع: | 30 درجة |
| درجة حرارة اللون: | 5000k | تصنيف IP: | IP65 |
| علامة مقاومة للانفجار: | Ex db mb IIB T6 - IP65 - WF2 | الحماية من الصواعق: | 6 كيلو فولت |
| مادة: | الألومنيوم ADC12 + الزجاج المقسى | ينهي: | رمادي |
| إصدار الشهادات: | ATEX, CE, ROHS, CCC | حياة: | 50,000 ساعة |
| درجة حرارة التشغيل: | -40 درجة مئوية إلى +60 درجة مئوية | ||
| إبراز: | 300W explosion proof LED flood light,ATEX IIB T6 explosion proof lighting,IP65 rated high bay LED light |
||
منتوج وصف

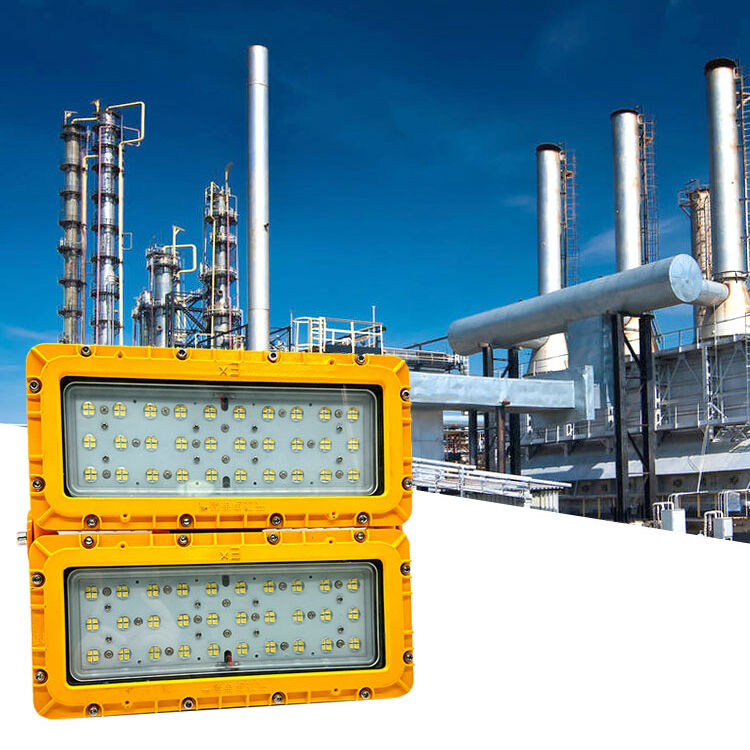

300W LED Explosion Proof Flood Light - 30° Ceiling Spot High Bay
The RFEPL8280-300W-CL30 is a 300W LED explosion proof flood light from the RFEPL8280 series, delivering 33000lm luminous flux with 110lm/W efficiency. ATEX Ex db mb IIB T6 certified with IP65 WF2 protection, this Grey finish floodlight features LUMILEDS SMD chip technology (LM-80 tested), 6KV lightning protection, and all-stainless-steel hardware passing 500-hour salt spray testing.
Key Features
- LUMILEDS SMD Technology - LM-80 tested premium LED chips delivering 110lm/W with CRI ≥80 and 50,000-hour L70 lifespan
- ATEX Ex db mb IIB T6 Certified - Zone 1/Zone 2 gas and Zone 21/Zone 22 dust hazardous atmospheres, temperature classes T1-T6
- 30° Beam Configuration - 30° Ceiling Mount Long-Range Spot for precise light distribution
- Grey Paint Finish - Durable powder coat finish with 500-hour salt spray certification on all stainless steel hardware
- Die-Cast Fin Heat Dissipation - Advanced aluminum substrate thermal management for reliable 300W continuous operation
- 6KV Lightning Protection - Built-in surge suppression for exposed outdoor industrial installations
- 180° Adjustable Bracket - Flexible angle adjustment with six mounting configurations available
- IP65 Waterproof WF2 - Sealed against dust and water jets with corrosion-resistant design
- Universal AC 100-277V - Power factor ≥0.95, compatible with global electrical systems
- CE, ROHS, CCC Certified - Full international compliance for global deployment
Applications
Suitable for High-ceiling chemical storage, tall warehouse classified areas:
- Oil extraction, refining and petrochemical processing
- Offshore platforms, FPSOs and drilling rigs
- Chemical storage, mixing and manufacturing facilities
- Electric power generation and distribution stations
- Military and defense hazardous installations
Technical Specifications
| Model Number | RFEPL8280-300W-CL30 |
| Item No. | RFEPL8280 |
| Power | 300W |
| Light Efficiency | 100-120lm/W |
| LED Chip | LUMILEDS SMD (LM-80) |
| Beam Angle | 30° |
| CRI | ≥80 |
| Explosion-Proof Mark | Ex db mb IIB T6 - IP65 - WF2 |
| Lightning Protection | 6KV |
| Material | Aluminum ADC12 + Tempered Glass |
| Finish | Grey |
| Mounting | Ceiling / Boom / Bracket / Wall / Flange / Guardrail |
| Certification | ATEX, CE, ROHS, CCC |
| Lifetime | 50,000 Hours |
| Operating Temperature | -40°C to +60°C |
The RFEPL8280 series delivers industrial-grade hazardous area illumination with LUMILEDS LED efficiency and ATEX-certified safety. Every unit is factory-tested for explosion-proof integrity and photometric performance.
For bulk pricing, OEM customization, or technical consultation, please contact our sales team.
