600W LED Explosion Proof Flood Light DC Solar Low Voltage Off-Grid Remote Wellhead Pipeline IP66 Die-Cast Aluminum ADC12
تفاصيل المنتج:
| مكان المنشأ: | قوانغدونغ، الصين |
| اسم العلامة التجارية: | ECER |
| إصدار الشهادات: | ATEX II 2G Ex d IIC T6 Gb, CE, ISO 9001:2015 |
| رقم الموديل: | EPFL-600W-SOL |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 10 قطع |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حزمة مربع + فقاعة أو حسب الطلب |
| وقت التسليم: | 10-15 يومًا أو تأكيد |
| شروط الدفع: | / تي تي، ويسترن يونيون |
| القدرة على العرض: | 5000 قطعة/شهر |
|
معلومات تفصيلية |
|||
| قوة: | 600 واط | تدفق مضيئة: | 72000 لومن |
|---|---|---|---|
| فعالية: | 120 لومن / ث | زاوية الشعاع: | 90 درجة |
| درجة حرارة اللون: | 5000k | رقاقة الصمام: | بريدجيلوكس سمد 3030 |
| تصنيف IP: | IP66 | مواد الإسكان: | ألومنيوم مصبوب ADC12 مع مجموعة تكامل الطاقة الشمسية |
| درجة حرارة التشغيل: | -30 درجة مئوية إلى +55 درجة مئوية | إصدار الشهادات: | ATEX II 2G Ex d IIC T6 Gb |
| عمر: | ≥50,000 ساعة L70 | ضمان: | 5 سنوات |
| إبراز: | 600W explosion proof LED flood light,solar low voltage explosion proof light,die-cast aluminum explosion proof flood light |
||
منتوج وصف

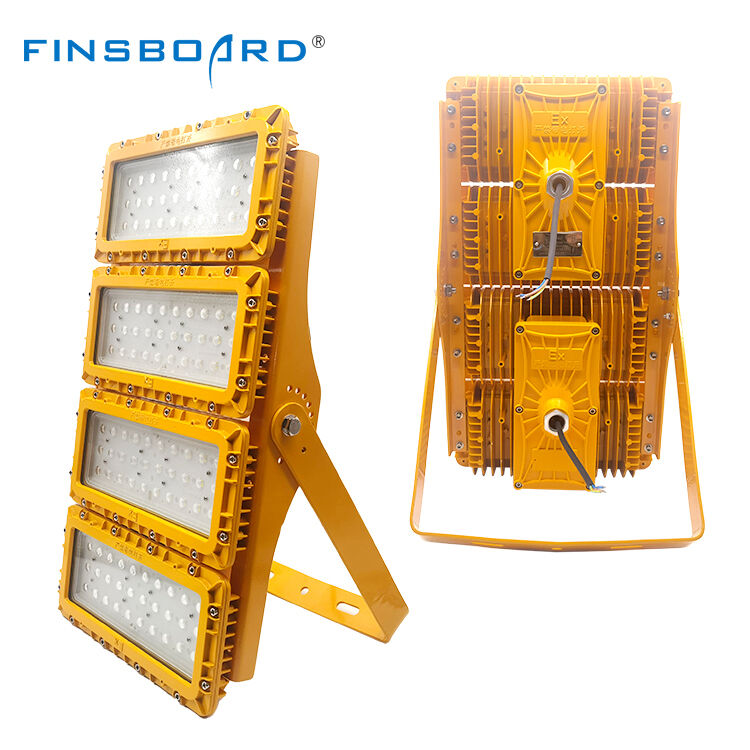

600W LED Explosion Proof Flood Light - DC Solar Low Voltage Off-Grid Remote Wellhead Pipeline
The EPFL-600W-SOL is a 600W LED explosion proof flood light delivering 72000lm luminous flux with 120lm/W efficiency. ATEX II 2G Ex d IIC T6 Gb certified with IP66 protection, this purpose-engineered floodlight features Die-Cast Aluminum ADC12 with Solar Integration Kit for demanding classified area applications.
Key Features
- 600W High-Efficiency Output - 72000lm total luminous flux at 120lm/W, replacing traditional HID fixtures with superior energy performance
- ATEX II 2G Ex d IIC T6 Gb Certified - Full explosion-proof certification for Zone 1/Zone 2 gas and Zone 21/Zone 22 dust hazardous atmospheres
- DC Low-Voltage Compatibility - Native 48VDC/110VDC input with wide-range MPPT controller interface, purpose-built for solar+battery off-grid systems at remote wellheads and pipeline stations
- IP66 Protection - Fully sealed against environmental ingress for reliable outdoor and industrial operation
- High Transmittance Tempered Glass - Safety glass lens with excellent light transmission and impact resistance
- Die-Cast Fin Heat Dissipation - Advanced thermal management ensuring consistent 600W performance and extended LED lifespan
- 180° Adjustable Bracket - Flexible angle adjustment for precise positioning in any installation scenario
- Universal Voltage Input - Compatible with global power distribution systems for simplified international deployment
- 5-Year Warranty - Backed by ≥50,000 hours L70 rated lifespan and factory quality testing
Applications
Engineered for remote wellhead sites, pipeline valve stations, SCADA monitoring stations, and off-grid hazardous area installations requiring solar compatibility:
- Oil and gas exploration, production and refining facilities
- Petrochemical processing and chemical manufacturing plants
- Offshore platforms, FPSOs and marine terminals
- Pharmaceutical and food processing classified zones
- Mining, tunneling and underground hazardous spaces
- Emergency and safety-critical lighting applications
Technical Specifications
| Model Number | EPFL-600W-SOL |
|---|---|
| Power Consumption | 600W |
| Luminous Flux | 72000lm |
| Efficacy | 120lm/W |
| Beam Angle | 90° |
| Color Temperature | 5000K |
| LED Chip | Bridgelux SMD 3030 |
| IP Rating | IP66 |
| Housing Material | Die-Cast Aluminum ADC12 with Solar Integration Kit |
| Operating Temperature | -30°C to +55°C |
| Certification | ATEX II 2G Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
Each unit undergoes 100% factory testing of the explosion-proof enclosure integrity and photometric performance verification. Our 5-year warranty reflects confidence in the long-term reliability of the EPFL-600W-SOL design.
For bulk orders, OEM customization, or technical inquiries, please contact our sales team.
