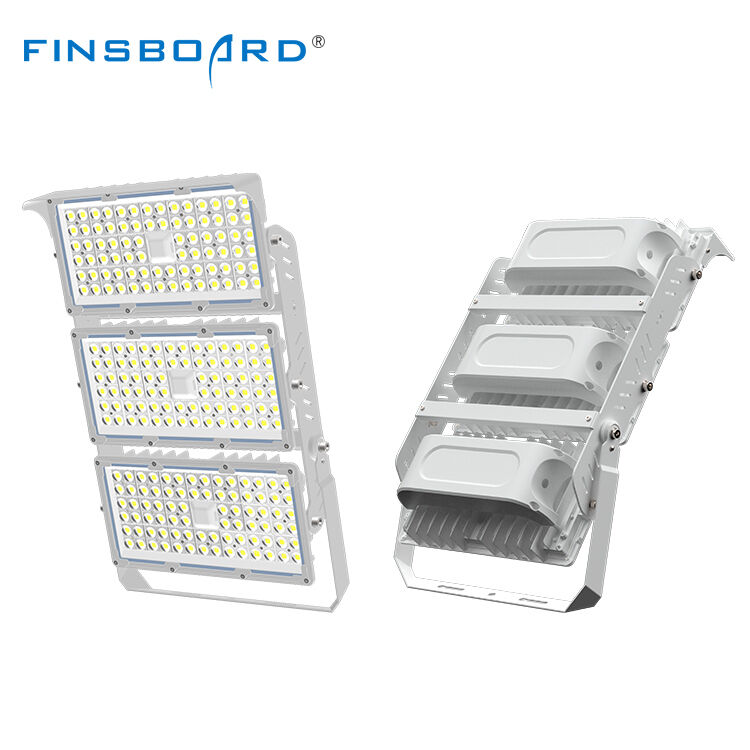

Project Use Modular Ip65 High Mast Light Tunnel Spotlight Outdoor Football Stadium LED Flood Light
تفاصيل المنتج:
| مكان المنشأ: | البر الرئيسى الصينى |
| اسم العلامة التجارية: | Fins board, BOCAQ |
| إصدار الشهادات: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 10 قطع |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حزمة مربع + فقاعة أو حسب الطلب |
| وقت التسليم: | 10-15 يومًا أو تأكيد |
| شروط الدفع: | / تي تي، ويسترن يونيون |
| القدرة على العرض: | 5000 قطعة/شهر |
|
معلومات تفصيلية |
|||
| مادة: | الألومنيوم | زاوية الشعاع: | 120 درجة |
|---|---|---|---|
| سائق: | تيار متردد 100-270 فولت | تصنيف الملكية الفكرية: | IP65 |
| سي سي تي: | 3000-6500 ك | يضمن: | 2/3/5 سنوات |
| استهلاك الطاقة: | 100 واط | ضد للماء: | IP65 |
| حجم المنتج: | 442*290*121552*441*121 | قوة: | 200 واط |
| كفاءة التجويف: | 100LM/W أو كما هو مخصص | رقاقة: | 2835/3030 حبة المصباح |
| ضمان: | سنتان | عدسة: | عدسة الكمبيوتر الضوئية |
| إبراز: | IP65 modular LED flood light,high mast tunnel spotlight,outdoor football stadium floodlight,high mast tunnel spotlight,outdoor football stadium floodlight |
||
منتوج وصف
Project Use Modular IP65 High Mast Light Tunnel Spotlight Outdoor Football Stadium LED Flood Light
Product Overview
The RFFL-16 model by Rongfei represents a cutting-edge solution in LED modular flood lights. Engineered for efficiency and versatility, it caters to various lighting applications including basketball courts, stadiums, tunnels, and farms.
Key Features
- Power Options: Available in 200-250W and 400-500W configurations
- Compact Design: 200-250W: 442×290×121mm | 400-500W: 552×441×121mm
- High Efficiency: 150-155 lumens per watt performance
- Weather Resistant: IP66 waterproof rating for harsh conditions
- Customizable: Multiple power options and beam angles available
Technical Specifications
| Parameter | 200-250W | 400-500W |
|---|---|---|
| Model | RFFL-16 | |
| Power | 200-250W | 400-500W |
| Size (mm) | 442×290×121 | 552×441×121 |
| Material | Aluminum + PC | |
| Driver | AC100-270V | |
| Light Source | SMD2835/3030 | |
| IP Rating | IP66 | |
| Light Efficiency | 150-155 lm/w | |
| Beam Angle | T1,T2,T3,30°,60°,90° | |
| Application | Basketball Court, Stadium, Tunnel, Farm | |
Product Details
- Famous LED Driver MEANWELL/INVENTRONICS for stable performance
- Die-casting aluminum heatsink with 96w/m.k thermal efficiency
- Highly thermal conductive aluminum PCB for lower LED temperatures
- 2835/3030/5050/7070 SMD light source options
- Strong iron bracket construction
- Waterproof silica gel sealing
- High temperature resistant optical PC lens with UV-proof design
- High-quality tempered glass protection
- Eaves design to prevent light scatter and reduce uplight pollution
Product Images
